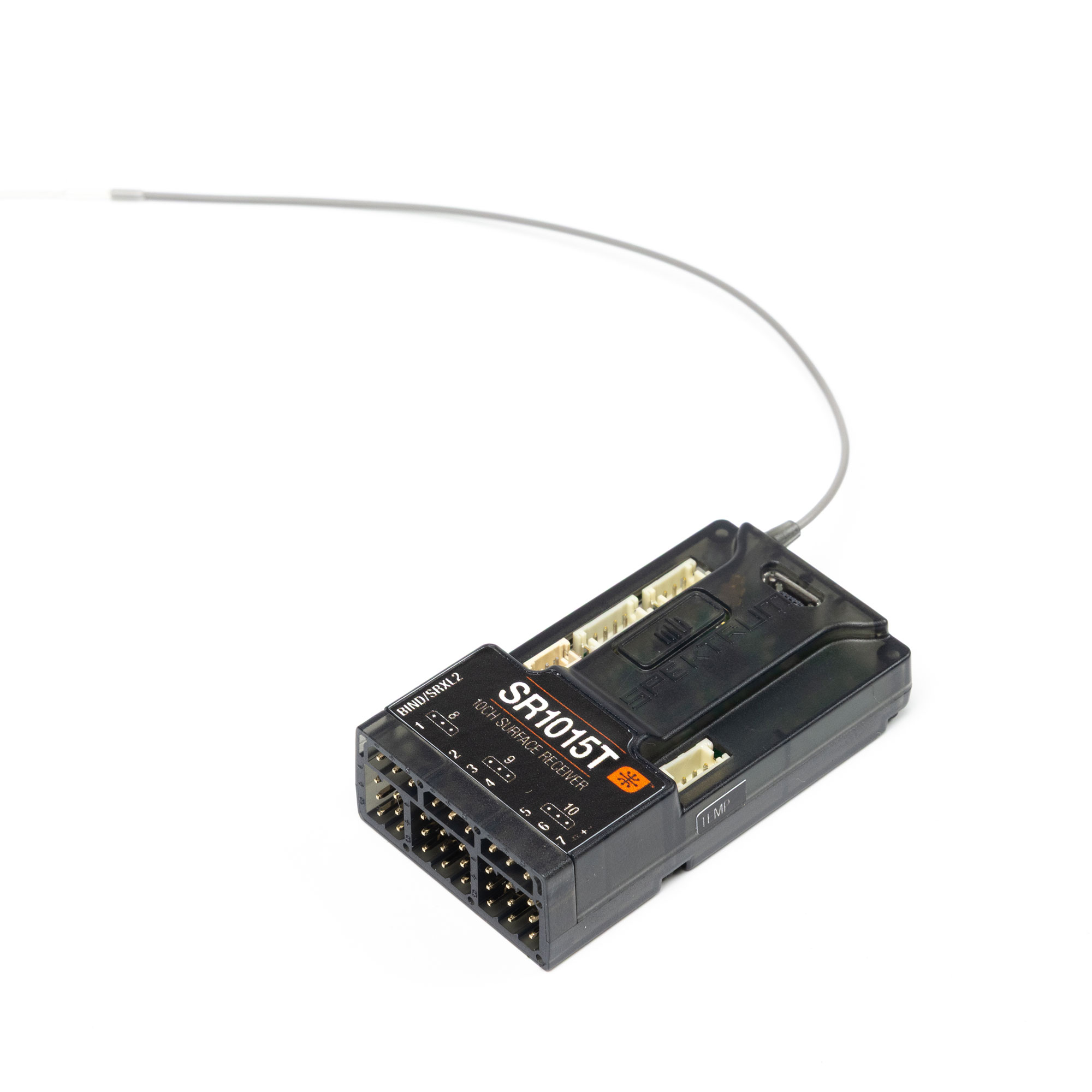

SR1015T 10-Channel DSMR+ Receiver

Item No. SPM-1055
Brand Logo
5 out of 5 Customer Rating

SR1015T 10-Channel DSMR+ Receiver

Item No. SPM-1055
$104.99
RC Club points earned on this item shown at checkout.
Select Options
DXC+ 12-Channel DSMR+ Transmitter with SR615 Receiver
SPM-1055 SPM6130
DXC+ 12-Channel DSMR+ Transmitter with SR615 Receiver
In Stock
$199.99
iXSR+ 12-Channel DSMR+ Transmitter with SR515 Receiver
SPM-1055 SPM6425
iXSR+ 12-Channel DSMR+ Transmitter with SR515 Receiver
In Stock
$699.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

The Spektrum SR1015T receiver is compatible with DSMR and DSMR+ transmitters that expands your surface channel use to 10 channels. Unlock more options than ever before for your favorite crawler, or basher vehicle. In addition of Smart Technology, the SR1015T features other integrated telemetry ports that are compatible with Spektrum transmitters.
icon-box
In The Box
  • (1) SR1015T 10-Channel DSMR+ Receiver
  • (1) Product Manual
icon-how-to
Needed to Complete
  • (1) Compatible Spektrum Surface Transmitter
SR1015T 10-Channel DSMR+ Receiver

Spektrum SR1015T 10-Channel DSMR+ Receiver Introduction

The Spektrum SR1015T surface receiver is compatible with DSMR and DSMR+ that expands surface channel use to 10 channels. DSMR+ makes more channels available than ever before for Spektrum surface enthusiasts. When matched with a DSMR+ capable transmitter, driver can unlock more options than ever before for your crawler, or basher vehicle. The SR1015T is Smart technology ready providing real-time telemetry data when used with Smart ESCs and Smart batteries. In addition to Smart technology, the SR1015T features other integrated telemetry ports that are compatible with Spektrum transmitters.

Spektrum SR1015T 10-Channel DSMR+ Receiver Features

  • 10-Channel DSMR / DSMR+ Surface Receiver
  • Water-Resistant
  • Full-range telemetry capabilities with Spektrum Firma Smart ESC
  • Long antenna suited for low to the ground vehicles and other applications
  • Compatible with all DSMR and DSMR+ Surface transmitters
  • Bind-button eliminates the need for a bind plug
  • Lightweight hard case
  • End pin output pins for easy and compact installation
  • Micro USB port for firmware updates utilizing the Spektrum PC programmer application

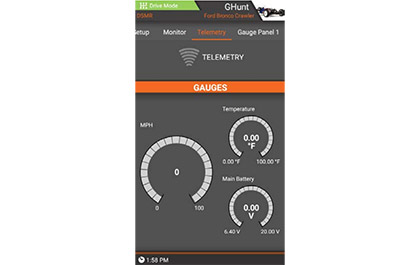

Smart Telemetry for the Spektrum SR1015T 10-Channel DSMR+ Receiver
Smart Telemetry

The SR1015T receiver throttle port includes Smart Throttle. This port will automatically detect when a Smart throttle electronic speed control is plugged in and the throttle port will begin to operate in Smart throttle mode. When combined with Spektrum Smart LiPo batteries with IC series connectors can pass along battery data from compatible Spektrum Smart batteries. If a standard ESC or servo is plugged into the throttle port on the SR1015T receiver, the throttle port will operate normally like any conventional receiver.

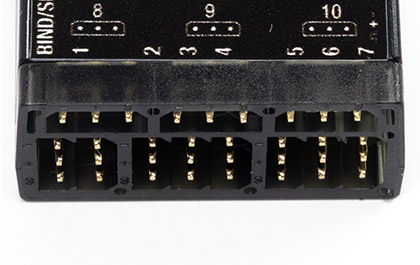

10-Channels for the Spektrum SR1015T 10-Channel DSMR+ Receiver
10-Channels

10 channels allow for more flexibility and versatile control for auxiliary systems such as winches, lights, overdrive, ESC auxiliary, dig, etc.

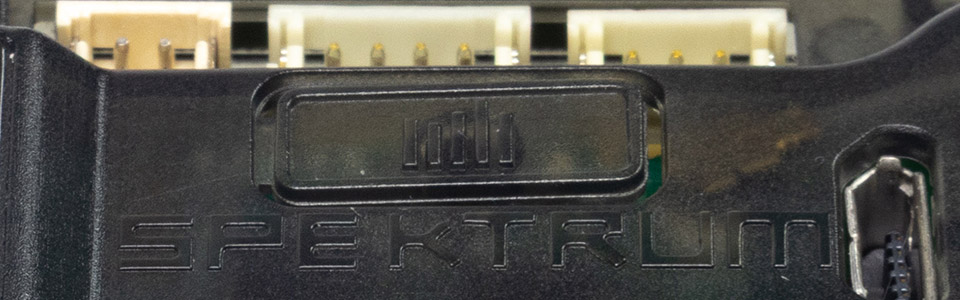

Bind Button for the Spektrum SR1015T 10-Channel DSMR+ Receiver
Bind Button

The SR1015T top-located button makes binding more convenient than ever while two bind-sequence options make the process simpler by allowing you to bind while powering up or after receiver power is connected.

Product Specifications

Antenna Length 6.75" (171 mm)
Application Surface
Band 2.4GHz
Bind Method Bind Button, Bind Plug
Channels 10
Failsafe Yes
Forward Programming Yes
Input Voltage 3.5–9V
Modulation DSMR+ / DSMR
Product Height 1.93" (49 mm)
Product Length 1.18" (30 mm)
Product Weight 0.63 oz (18 g)
Product Width 0.59" (15 mm)
Range Full
Resolution 2048
Technology DSMR Protocol, DSMR+
Telemetry Yes
Water-Resistant Yes
