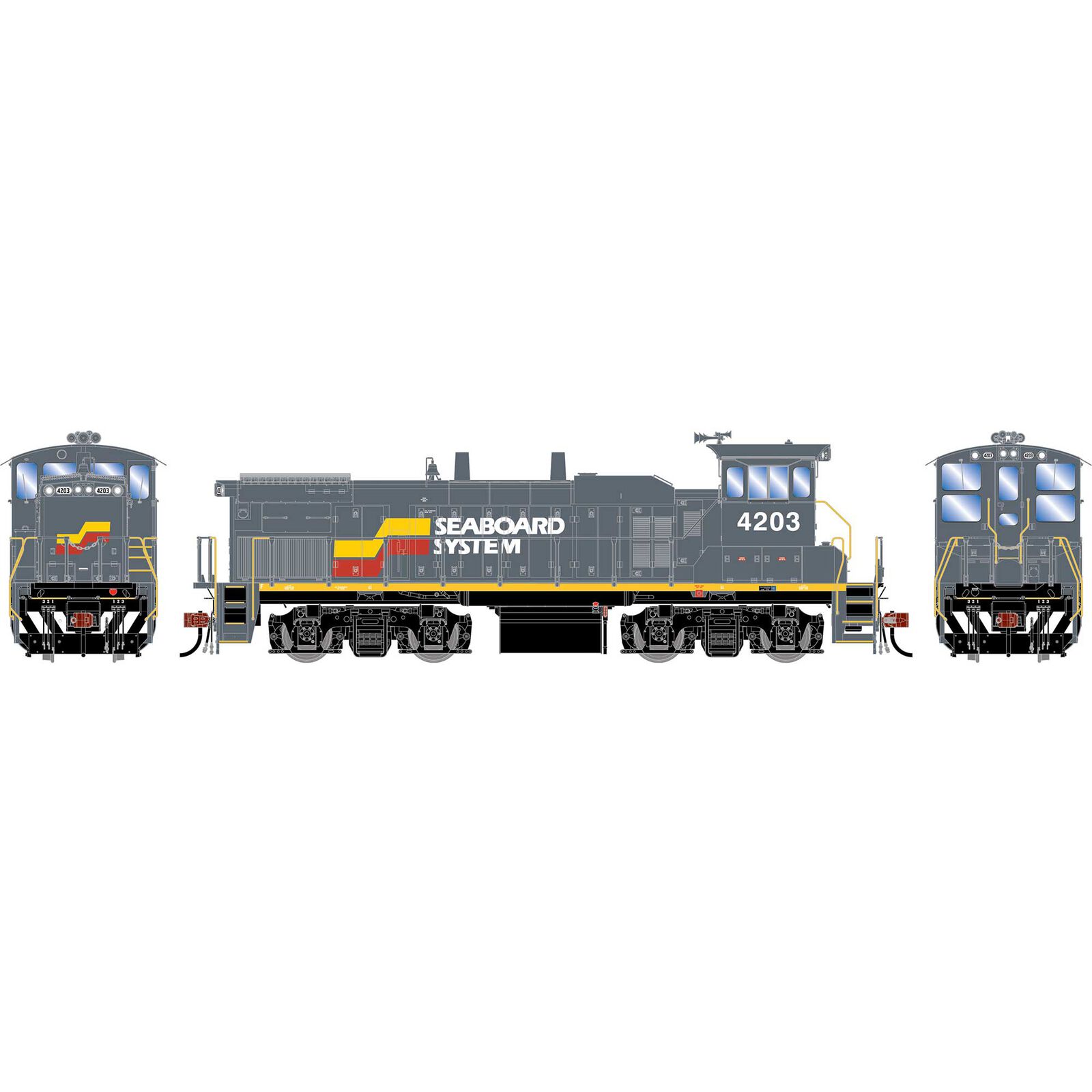

HO GEN MP15AC Locomotive, SBD #4203

Item No. ATHG-2522
Pre-Order
Brand Logo
3.1 out of 5 Customer Rating

HO GEN MP15AC Locomotive, SBD #4203

Item No. ATHG-2522
$234.77
RC Club points earned on this item shown at checkout.
Releasing November 2026
Selected Store

Product Details

Seaboard System’s MP15AC’s were originally built for Seaboard Coast Line by EMD in October 1977 and were delivered in the then current Family Lines paint scheme. They became part of the Seaboard System fleet when that company was formed in 1982. They later became part of the CSX roster.

ATHEARN EMD MP15AC DIESEL LOCOMOTIVE PROTOTYPE AND BACKGROUND INFO:

The EMD MP15 is a light road switcher that was built between 1974 and 1980. It came in two designs, the MP15DC and the MP15AC. It was billed as replacement for the EMD SW1500

The MP15DC’s standard Blomberg B trucks were capable of transition and road speeds up to 60 mph (97 km/h), allowing use on road freights. Soon there was a demand for a model with an advanced AC drive system. The MP15AC replaced the MP15DC’s DC generator with an alternator producing AC power which is converted to DC for the traction motors with a silicon rectifier. The MP15AC is 1.5 ft (457 mm) longer than an MP15DC, the extra space being needed for the rectifier equipment. The alternator-rectifier combination is more reliable than a generator, and this equipment became the standard for new diesel-electric locomotive designs.

The MP15AC is easily distinguished from the DC models. Instead of the front-mounted radiator intake and belt-driven fan used on all previous EMD switchers, these have intakes on the lower forward nose sides and electric fans. Side intakes allowed the unit to take in cooler air, and the electric fans improved a serious reliability issue found in its earlier DC sisters.

In the early 1970s railroads were starting to convert to AC power, the six largest buyers, Milwaukee (64), Southern Pacific (58), Seaboard Coast Line Railroad (45), Nacionales de México (25), Long Island (23), and Louisville & Nashville (10), were all buyingAC road locomotives. 36 more units were sold to 8 other customers.

Athearn May / June 2025 Announcements: Athearn Genesis EMD MP15AC Diesel Locomotive Video

Train Tuesday 03/25/25: Athearn Genesis EMD MP15AC Video

Product Specifications

Axles 4
Coupler Style McHenry Scale Knuckle
DCC Ready/21-Pin NEM
Era 1971-1990,1991-2009,2010-Present Day
Full Road Name Seaboard System
Lighting LED
Minimum Radius 18
Prototype Manufacturer EMD
Reporting Mark SBD
Scale HO
Sub Brand GENESIS
Wheel Configuration B-B
