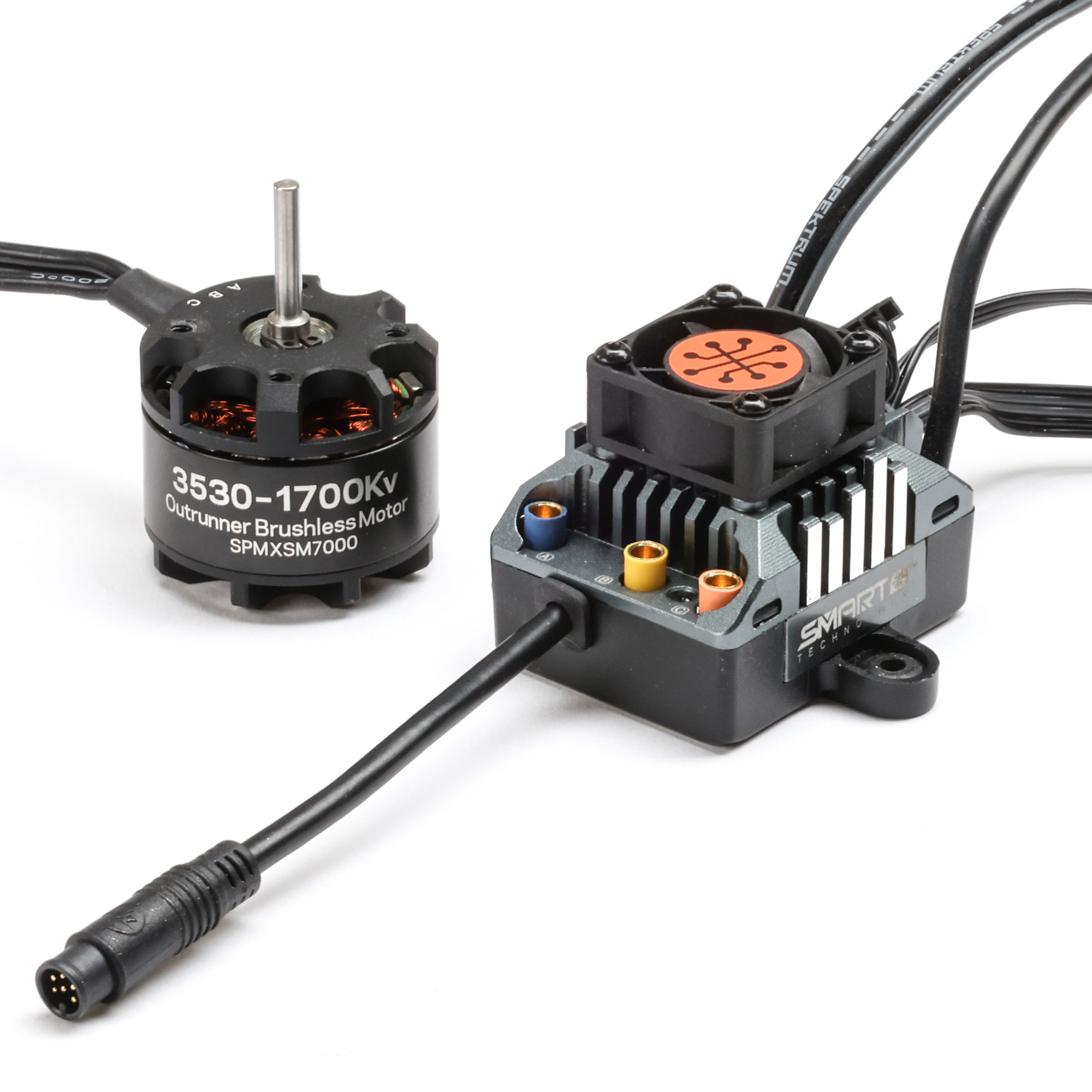

Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo: 1700Kv

Item No. SPMXSEMC23
Brand Logo
5 out of 5 Customer Rating

Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo: 1700Kv

Item No. SPMXSEMC23
$359.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Firma 80A Sensored/Sensorless ESC with Sensorless 1700Kv Outrunner Brushless Motor Combo Smart Sensorless outrunner upgrade system for 1/10th scale crawlers and scalers.
icon-box
In The Box
  • (1) Firma 80A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S)
  • (1) Firma 3530-1700Kv 12-Pole Outrunner Brushless Motor, 3.175mm (SPMXSM7000)
Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo: 1700Kv

Spektrum Firma 80A Sensored/Sensorless Smart Outrunner Motor / ESC 2-in-1 Combo Overview

The Spektrum™ 1/10th Scale Smart Sensored-Sensorless ESC + Motor Combo is a great choice for 1/10th scale crawlers and models running on 2S – 4S LiPo power. This 1700Kv motor features a low cog 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed to provide ultra-smooth, low speed control, performance, and high reliability. The motor is preinstalled with 3.5mm gold-plated bullet connectors for easy installation, and perfectly matched for the included Firma 80A Smart ESC. This waterproof, 80A Sensored/sensorless ESC drives your 1/10th scale crawler or scaler through almost any conditions imaginable, with ultra-smooth control, performance, and reliability — while feeding real-time telemetry straight to your Spektrum™ transmitter! This ESC includes the ability to disable drag brake from compatible SPM transmitters.

Spektrum Firma 80A Brushless Sensored Smart ESC, Outrunner (SPMXSE2060S) Features

  • Smart All-In-One Telemetry
  • Enable/Disable Drag Brake From Compatible Spektrum Transmitters
  • Fast, Powerful 32-Bit ARM M4 Processor
  • Multiple Programming Options
  • Multi-Point Protection
  • Waterproof (See Instructions For Details)
  • Spektrum Firma 3530-1700Kv 12-Pole Outrunner Brushless Motor, 3.175mm (SPMXSM7000) Features

  • 2-4S LiPo Power Compatible
  • 12-pole Outrunner
  • 3.175mm Output Shaft
  • Pre-installed 3.5mm Gold-plated Bullet Connectors
  • Product Specifications

    Amperage 80A
    Auto Cutoff Yes
    BEC Voltage 6V/7.4V at 6A
    Connector Type 3.5mm Bullet, IC3
    ESC Type Sensored Brushless
    Forward Yes
    Input Voltage 2-4S LiPo
    LiPo Compatibility 2S, 4S, 3S
    Low-Voltage Cutoff Programmable Yes
    Maximum Burst Current 360A
    Motor Limit 4S less than 2000Kv, 3S up to 2500Kv
    Number of Poles 12
    Overload Protection Yes
    Reverse Yes
    RPM/Volt (Kv) 1700Kv
    Shaft Diameter 3.175" (81 mm)
    Shaft Length 18.5" (470 mm)
    Technology Smart
