Firma 4685-1450Kv Brushless Motor: 8mm

Item No. SPMXSM5400
$154.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to Firma 4685-1450Kv Brushless Motor: 8mm has been copied

Product Details

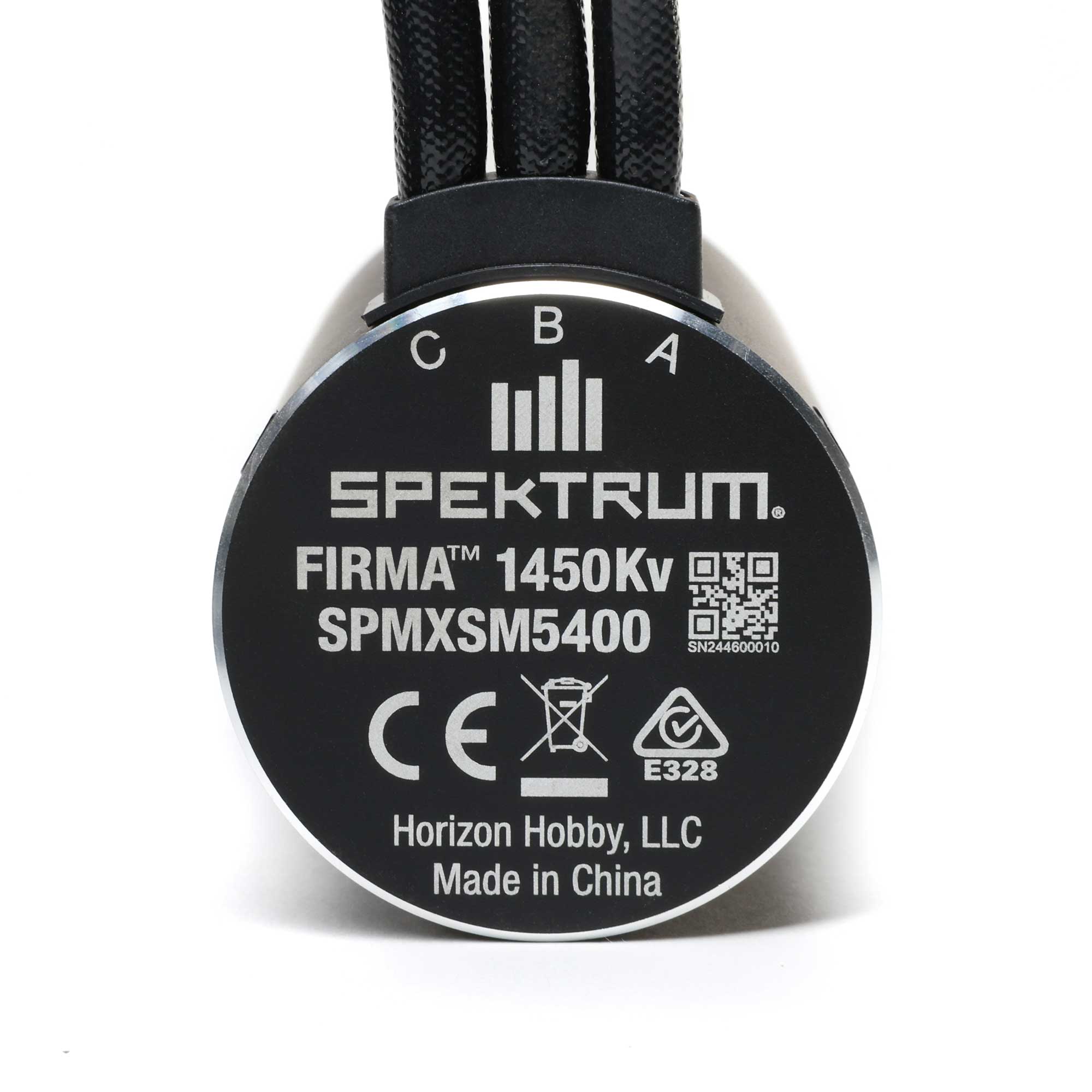

The Spektrum™ Firma™ 4685 1450Kv Sensorless Brushless Motor is the perfect replacement option for the ARRMA® Limitless 120 RTR. This motor features a low-cog 4-pole rotor design, CNC machined aluminum housing, insulated high-purity copper windings, a high-quality alloy steel 8mm output shaft, and precision bearings for durability and smooth rotation.
Key Features
  • Developed as a standard part for the Limitless 120 8S RTR (ARA7816), and compatible with the Outcast EXB 8S RTR (ARA5810V2T1) and Kraton EXB 8S RTR (ARA5808V2T1)
  • Highly efficient design
  • High-quality 4-pole sintered rotor
  • 4S-8S LiPo power compatible
  • Higher RPM, lower torque variant of SPMXSM1205
icon-box
In The Box
  • (1) Firma 4685-1450Kv Brushless Motor
Firma 4685-1450Kv Brushless Motor: 8mm
Quick Links
icon-pdf-download Manuals & Support

Product Specifications

Application 1/7-1/5 scale, 8S Vehicles
Connector Type 6.5mm Bullet
Motor Size 4685-1450
Motor Type Brushless
Number of Poles 4
Outer Diameter 1.81" (46 mm)
Product Length 3.34" (85 mm)
Product Weight 775g
RPM/Volt (Kv) 1450Kv
Shaft Diameter 0.31" (8 mm)
Shaft Length 0.86" (22 mm)
Voltage 12.0v-35.2V
