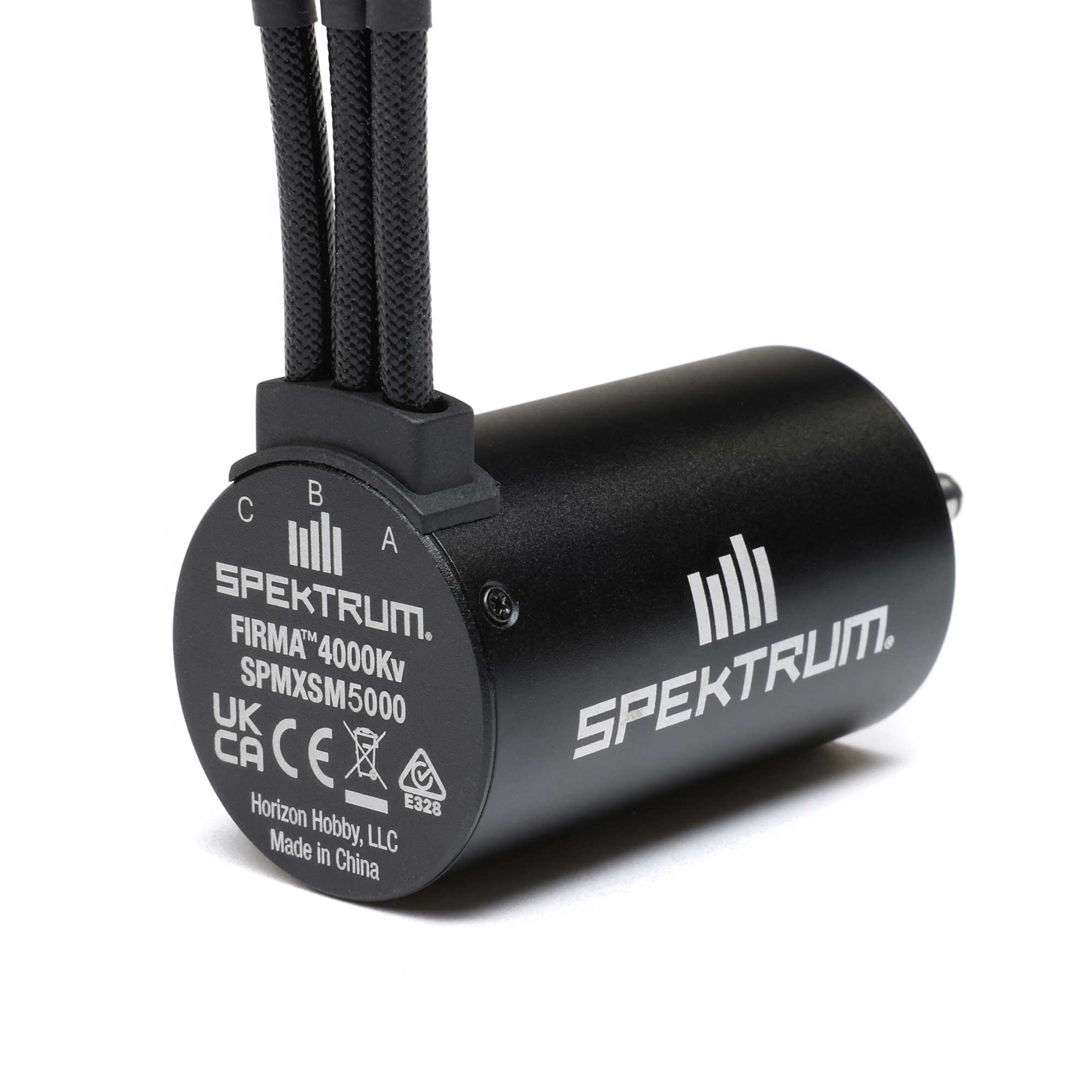

Firma 3660-4000Kv 4-Pole Sensorless Brushless Motor: 5mm

Item No. SPMXSM5000
Brand Logo
4.6 out of 5 Customer Rating

Firma 3660-4000Kv 4-Pole Sensorless Brushless Motor: 5mm

Item No. SPMXSM5000
$74.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Key Features
  • 2-3S LiPo Power Compatible
  • 4-pole Rotor Design
  • 5mm Allow Steel Output Shaft
  • Pre-installed 4mm Gold-plated Bullet Connectors
icon-box
In The Box
  • (1) Firma 3660-4000Kv 4-Pole Sensorless Brushless Motor: 5mm
Firma 3660-4000Kv 4-Pole Sensorless Brushless Motor: 5mm

Spektrum Firma 3660-4000Kv 4-Pole Sensorless Brushless Motor Overview

The Spektrum® Firma™ 3650 4000Kv Brushless Motor is a great replacement motor for the 1/8 scale INFRACTION® 4X4 3S BLX All-Road RTR running on 2-3S LiPo power. This motor features a 4-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and a high-quality alloy steel 5mm output shaft for durability and smooth rotation. The motor also includes preinstalled 4mm gold-plated bullet connectors for easy installation.

Product Specifications

Connector Type 4mm Bullet
Connector Wire Length 1.96" (50 mm)
Motor Size 3660-4000Kv
Motor Type Brushless
Number of Poles 4
Outer Diameter 1.41" (36 mm)
Product Length 2.36" (60 mm)
Product Weight 300g
RPM/Volt (Kv) 4000Kv
Shaft Diameter 0.19" (5 mm)
Shaft Length 0.87" (22 mm)
Voltage 7.4v - 11.1v
