Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm

Item No. SPMX-1066
Brand Logo
5 out of 5 Customer Rating

Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm

Item No. SPMX-1066
$104.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

Sensored outrunner motor developed for 1/10th scale crawlers and scalers. Pairs perfectly with the SPMXSE2060S ESC.
Key Features
  • 2-3S LiPo Power Compatible
  • 14-pole Outrunner
  • 3.175mm Output Shaft
  • Pre-installed 3.5mm Gold-Plated Bullet Connectors
icon-box
In The Box
  • (1) Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm
Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm

Spektrum Firma 14-Pole Sensored Outrunner Brushless Motor Overview

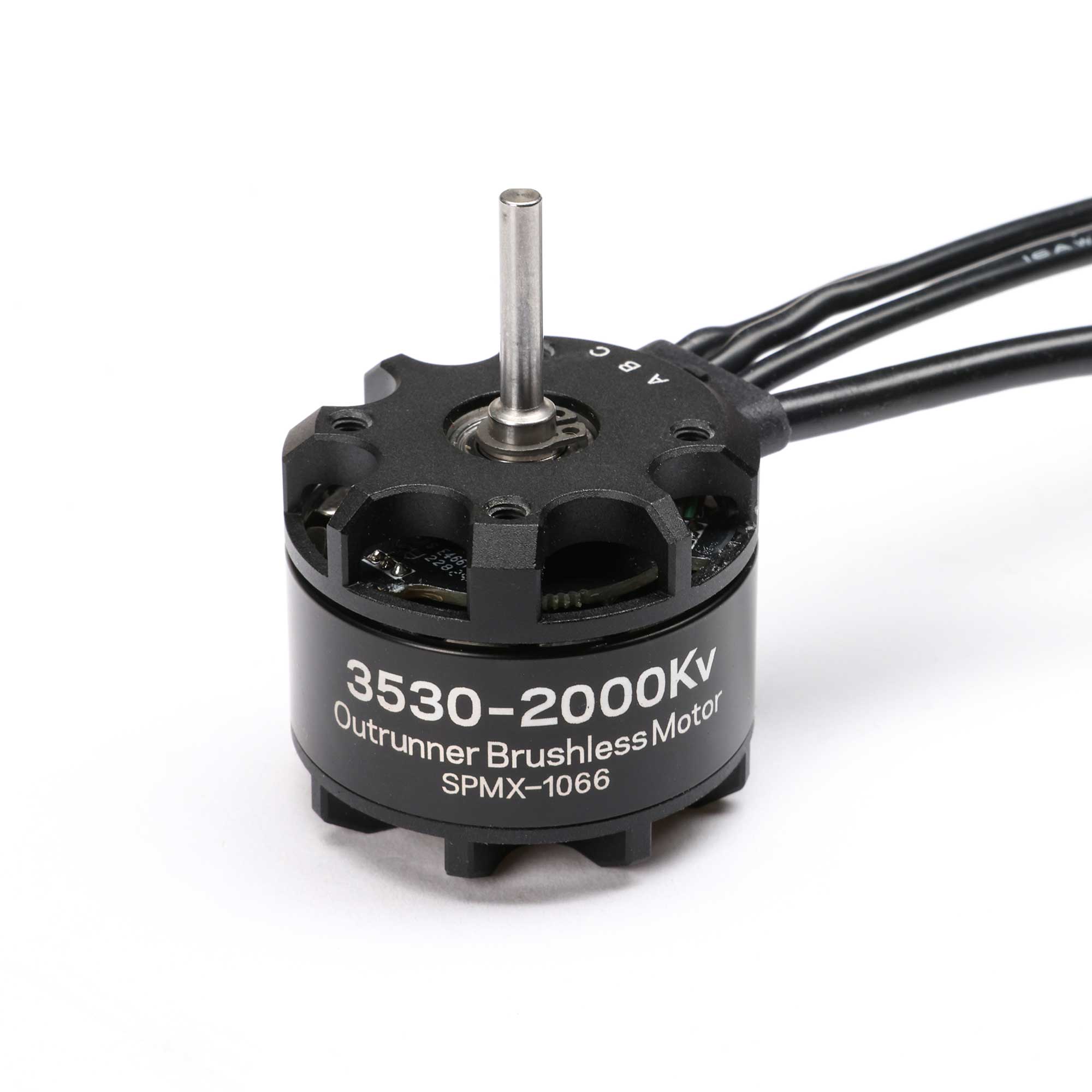

The Spektrum® Firma™ 3630 2000Kv Brushless Outrunner Motor is a great choice for Scaler and Crawler models running on 2-3S LiPo power. This motor features a 14-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and a high-quality alloy steel 3.175mm (1/8 in.) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation.

Product Specifications

Connector Type 3.5mm Bullet
Connector Wire Length 8.07" (205 mm)
LiPo Compatibility 2S, 3S
Manufacturer # SPMXSM8000
Motor Type Brushless
Number of Poles 14
Outer Diameter 1.37" (35 mm)
Product Length 1.18" (30 mm)
Product Weight 95g
RPM/Volt (Kv) 2000Kv
Shaft Diameter 0.12" (3 mm)
Shaft Length 0.72" (18 mm)
Voltage 7.4v - 11.1v
