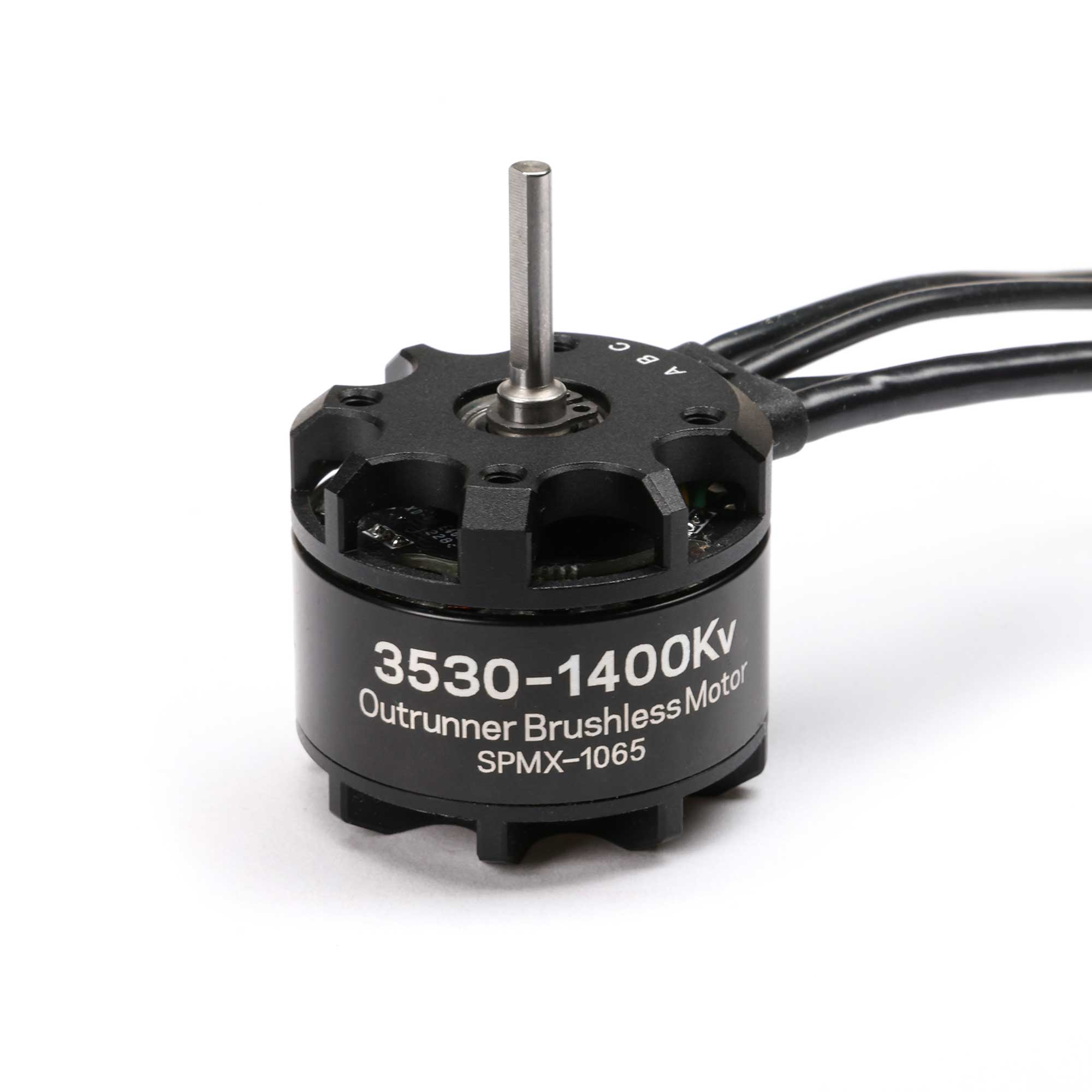

Firma 3530-1400Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm

Item No. SPMX-1065
Brand Logo
4.8 out of 5 Customer Rating

Firma 3530-1400Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm

Item No. SPMX-1065
$104.99
RC Club points earned on this item shown at checkout.
Select Options
Firma 1/10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo: 2000Kv
SPMX-1065 SPMXSEMC22
Firma 1/10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo: 2000Kv
In Stock
$369.99
0 Item Selected Items Selected
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store

Product Details

This Firma Sensored Ourunner Motor for 1/10th scale crawlers and scalers is a replacement motor for SPMXSEMC22. It is an optional motor for SPMXSEMC22 and SPMXSEMC23.
Key Features
  • 2-4S LiPo Power Compatible
  • 14-pole Outrunner
  • 3.175mm Output Shaft
  • Pre-installed 3.5mm Gold-Plated Bullet Connectors
icon-box
In The Box
  • (1) Firma Sensored 3530-1400Kv Outrunner Brushless Motor
Firma 3530-1400Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm

Spektrum Firma 14-Pole Sensored Outrunner Brushless Motor Overview

The Spektrum® Firma™ 3630 1400Kv Brushless Outrunner Motor is a great choice for Scaler and Crawler models running on 2-4S LiPo power. This motor features a 14-pole rotor design, CNC machined aluminum housing, insulated high purity copper windings, and a high-quality alloy steel 3.175mm (1/8 in.) output shaft for durability and smooth rotation. The motor includes preinstalled 3.5mm gold-plated bullet connectors for easy installation.

Product Specifications

Connector Type 3.5mm Bullet
Connector Wire Length 8.07" (205 mm)
LiPo Compatibility 2S, 3S, 4S
Motor Size 3530-1400Kv
Motor Type Brushless
Number of Poles 14
Outer Diameter 1.37" (35 mm)
Product Length 1.18" (30 mm)
Product Weight 95g
RPM/Volt (Kv) 1400Kv
Shaft Diameter 0.72" (18 mm)
Shaft Length 0.12" (3 mm)
Voltage 7.4v – 14.8v
