Firma 1/10 Smart Sensored Outrunner Motor/ESC Combo: 2000Kv Smart Sensored outrunner upgrade system for 1/10th scale crawlers and scalers.
icon-box
In The Box

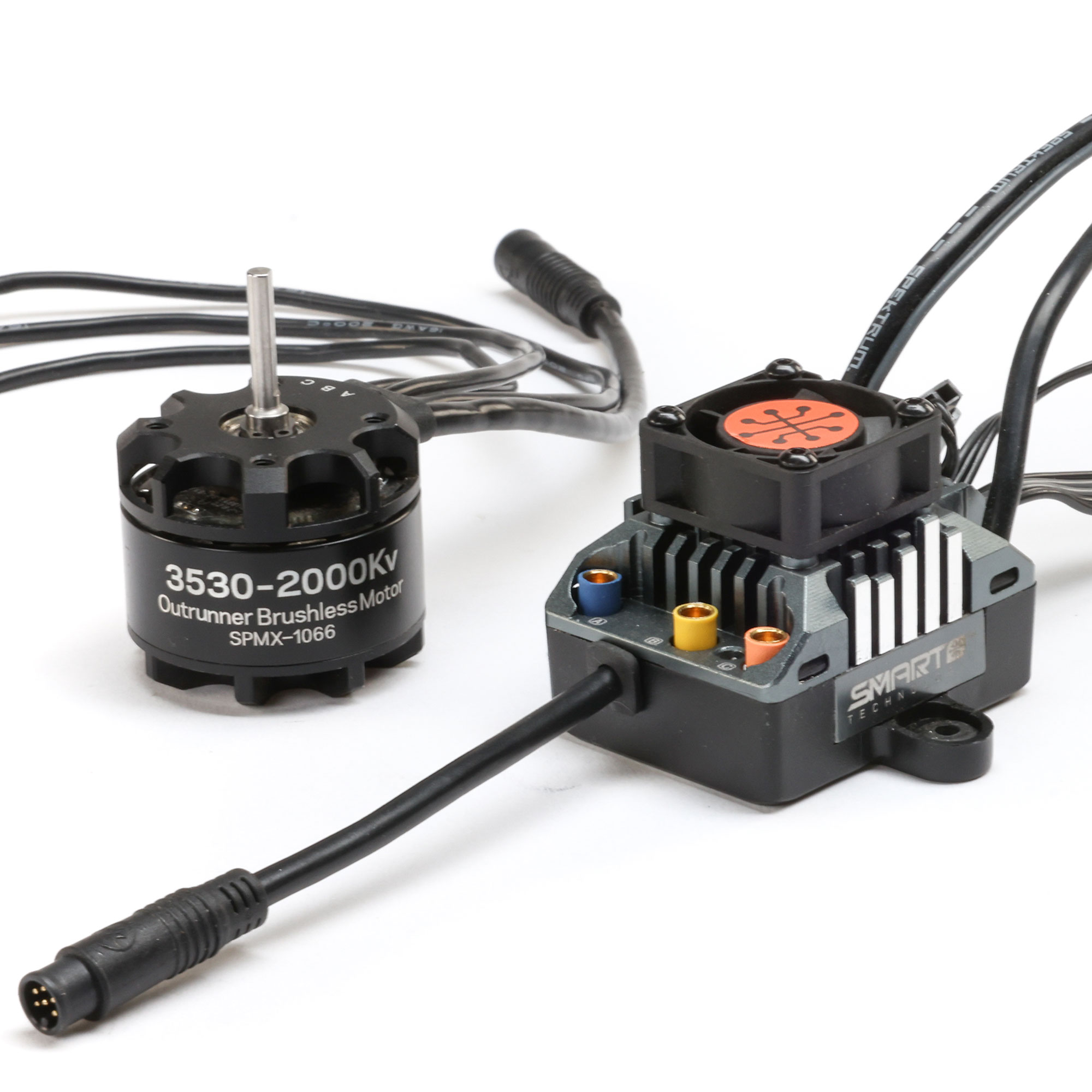

  • (1) Firma 60A Brushless Sensored Smart ESC,Outrunner (SPMXSE2060S)
  • (1) Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor, 3.175mm (SPMX-1066)
Firma 1/10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo: 2000Kv

Spektrum Firma 1/10 Smart Sensored Outrunner Motor / ESC 2-in-1 Combo Overview

The Spektrum™ Smart 1/10 Sensored Outrunner 2000Kv Motor/ESC Combo is the perfect choice for your crawler or scaler models running on 2-4S LiPo power. This combo features a low-cog, 12-pole, 14-magnet rotor design, CNC machined aluminum housing, insulated high-purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for durability and smooth rotation. This combo is specifically developed for 1/10 crawlers and scalers to provide ultra-smooth low speed control and performance and reliability. The Motor/ESC combo includes preinstalled 3.5mm gold-plated bullet connectors for easy installation. Furthermore, the included SPMX-1066 motor is perfectly matched for the included Firma 80A Smart ESC (SPMXSE2060S).

Spektrum Firma 80A Brushless Sensored Smart ESC,Outrunner (SPMXSE2060S) Features

  • Smart All-In-One Telemetry
  • Enable/Disable Drag Brake From Compatible Spektrum Transmitters
  • Fast, Powerful 32-Bit ARM M4 Processor
  • Multiple Programming Options
  • Multi-Point Protection
  • Waterproof (See Instructions For Details)
  • Spektrum Firma 3530-2000Kv 14-Pole Sensored Outrunner Brushless Motor (SPMX-1066) Features

  • 2-3S LiPo Power Compatible
  • 12-pole Outrunner
  • 3.175mm Output Shaft
  • Pre-installed 3.5mm Gold-plated Bullet Connectors
  • Product Specifications

    Auto Cutoff Yes
    BEC Voltage 6V/7.4V at 6A
    Brakes Yes
    Connector Type IC3, 3.5mm Bullet
    ESC Type Sensored Brushless Ourunner
    Forward Yes
    Input Voltage 2-4S LiPo
    LiPo Compatibility 2S,4S
    Low-Voltage Cutoff Programmable Yes
    Maximum Burst Current 360A
    Maximum Continuous Current Yes
    Motor Limit 2000Kv (4S)
    Number of Poles 12
    Overload Protection Yes
    Reverse Yes
    RPM/Volt (Kv) 2000Kv
    Shaft Diameter 3.175" (81 mm)
    Shaft Length 18.5" (470 mm)
    Technology Smart
