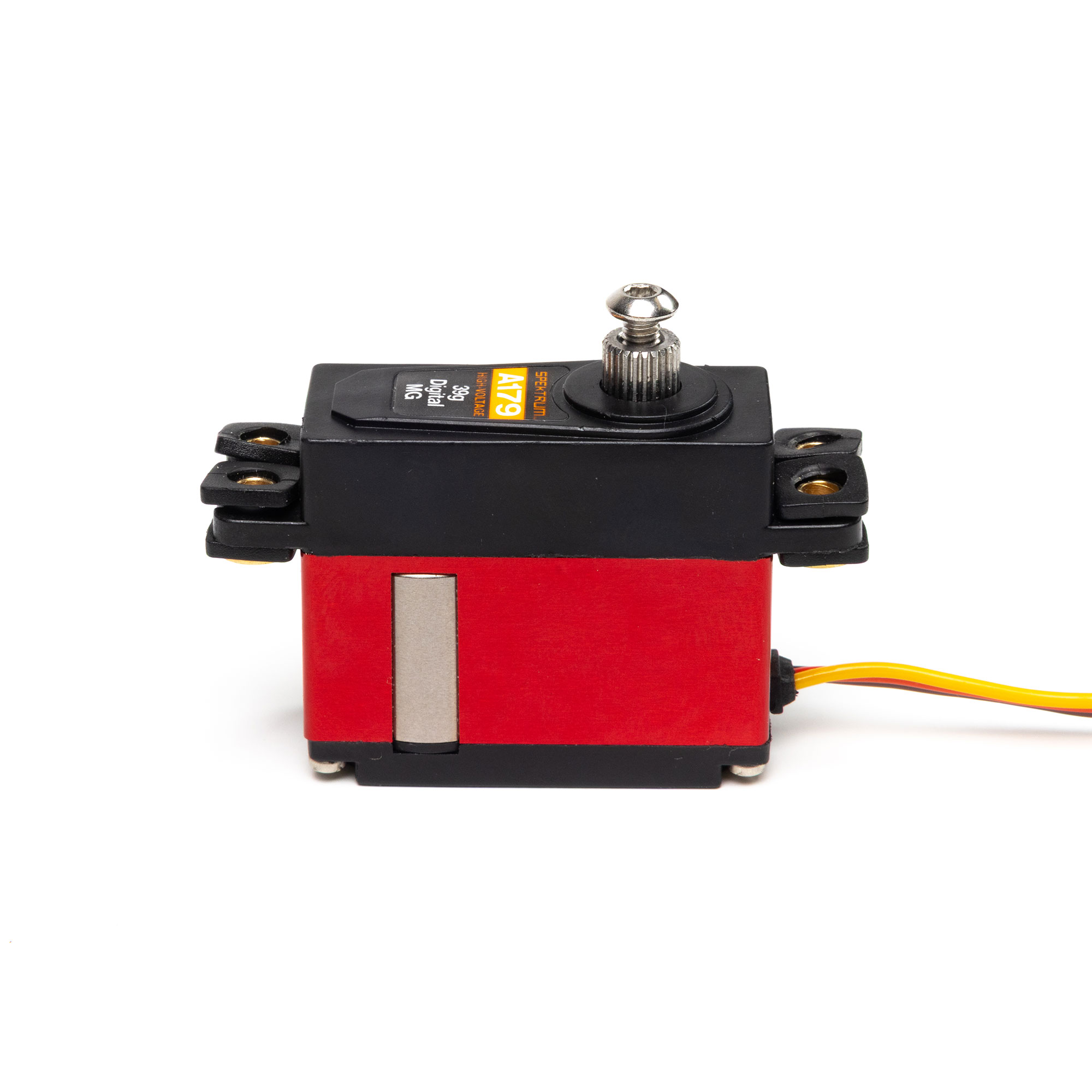

A179 42g High-Voltage Metal-Geared Digital Servo, 375mm Lead

Item No. SPMSA179
A179 42g High-Voltage Metal-Geared Digital Servo, 375mm Lead
A179 42g High-Voltage Metal-Geared Digital Servo, 375mm Lead
A179 42g High-Voltage Metal-Geared Digital Servo, 375mm Lead
A179 42g High-Voltage Metal-Geared Digital Servo, 375mm Lead
Brand Logo
4 out of 5 Customer Rating

A179 42g High-Voltage Metal-Geared Digital Servo, 375mm Lead

Item No. SPMSA179
$64.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to A179 42g High-Voltage Metal-Geared Digital Servo, 375mm Lead has been copied

Product Details

Replacement aileron servo for the E-flite Eratix 3D SWS 1.6m (64”) airplane. This 42g mini servo is capable of 150 oz-in of torque, at 7.4V, with a speed of 0.11 seconds / 60 degrees. The case dimensions are 35.5 x 15 x 34.65mm. It uses a coreless motor, has metal gears, and the output shaft has 25 splines.
icon-box
In The Box
  • (1) A179 42g High-Voltage Metal-Geared Digital Servo
A179 42g High-Voltage Metal-Geared Digital Servo, 375mm Lead

Product Specifications

Application Airplane
Bearing Yes
Connector Wire Length 8.66" (220 mm)
Gear Type Metal
Maximum Servo Speed Speed: 0.08 sec/60 deg @ 8.4V; 0.09 sec/60 deg @7.4V; 0.11 sec/60 deg @6.0V
Product Weight 42g
Servo Operating Voltage 6.0 - 8.4V (HV)
Servo Size Category Mini
Servo Type Digital
Spline Count 25 - Tooth
Torque 170 oz-in (22kg-cm) @ 8.4V; 150oz-in (19 kg-cm) @ 7.4V; 110 oz-in (15 kg-cm) @ 6.0V
