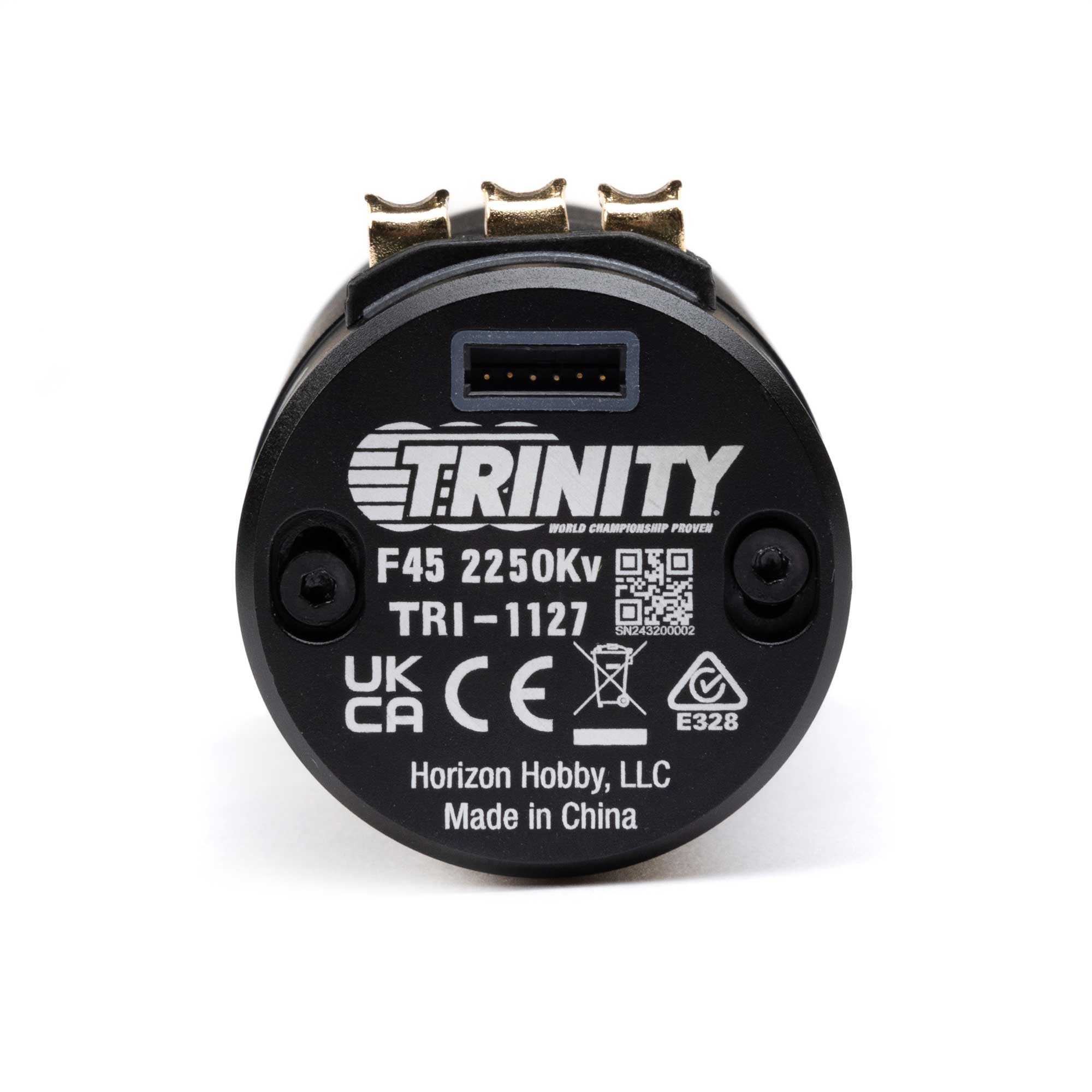

1/8 F45 2250Kv Truggy Brushless Race Motor

Item No. TRI-1127
1/8 F45 2250Kv Truggy Brushless Race Motor
1/8 F45 2250Kv Truggy Brushless Race Motor
1/8 F45 2250Kv Truggy Brushless Race Motor
1/8 F45 2250Kv Truggy Brushless Race Motor
1/8 F45 2250Kv Truggy Brushless Race Motor
Brand Logo
4.8 out of 5 Customer Rating

1/8 F45 2250Kv Truggy Brushless Race Motor

Item No. TRI-1127
$199.99
RC Club points earned on this item shown at checkout.
Only manufacturer discounts can be applied to this product. Tower Hobbies coupon codes not applicable
In Stock
Selected Store
The link to 1/8 F45 2250Kv Truggy Brushless Race Motor has been copied

Product Details

Power your 1/8 scale buggy or truggy by dropping in a high rpm Trinity F45 Brushless Race Motor. These motors are sensored for smooth acceleration and feature an enclosed housing for protection against the toughest 1/8 track conditions.
Key Features
  • Created specifically for racers demanding the most out of their 1/8 buggies and truggies
  • New Trinity motor design for increased durability
  • Efficient, high-performance operation
  • Sensored for smooth, precise control
  • Precision ball bearings and hardened steel 5mm shaft
  • High-quality 4-pole sintered rotor
  • One-year limited warranty protection
icon-box
In The Box
  • (1) Trinity F45 2250Kv 1/8 Brushless Race Motor
  • (1) Product Manual
1/8 F45 2250Kv Truggy Brushless Race Motor
Quick Links
icon-pdf-download Manuals & Support

Trinity 1/8 F45 2250Kv Truggy Brushless Race Motor Introduction

Trinity F45 Brushless Race Motors deliver the muscle you need to make your 1/8 scale buggy or truggy perform like a champion. With 2S-6S LiPo power compatibility, these motors produce high rpm with exceptional efficiency. These power units also offer smooth acceleration and predictable low-speed drivability due to their sensored design.

F45 Brushless Race Motors offer a completely enclosed design, reducing your maintenance needs and giving them protection and durability to excel in demanding off-road environments. Other features include a 4-pole rotor for high torque, CNC-machined aluminum housing, insulated copper windings, steel 5mm output shaft, and smooth precision bearings.

Product Specifications

Application 1/8 Scale Off-Road Vehicle
Maximum Continuous Current 80A
Motor Type Brushless
Number of Poles 4
Outer Diameter 1.61" (41 mm)
Power (watts) 3100 watts
Product Length 2.91" (74 mm)
Product Weight 12.7oz (360g)
RPM/Volt (Kv) 2250Kv
Shaft Diameter 0.19" (5 mm)
Thread Size 4xM4 and 4xM3 @ 25.4 Spacing Center to Center
Voltage 2S – 6S LiPo (8.4V –25.2V)
