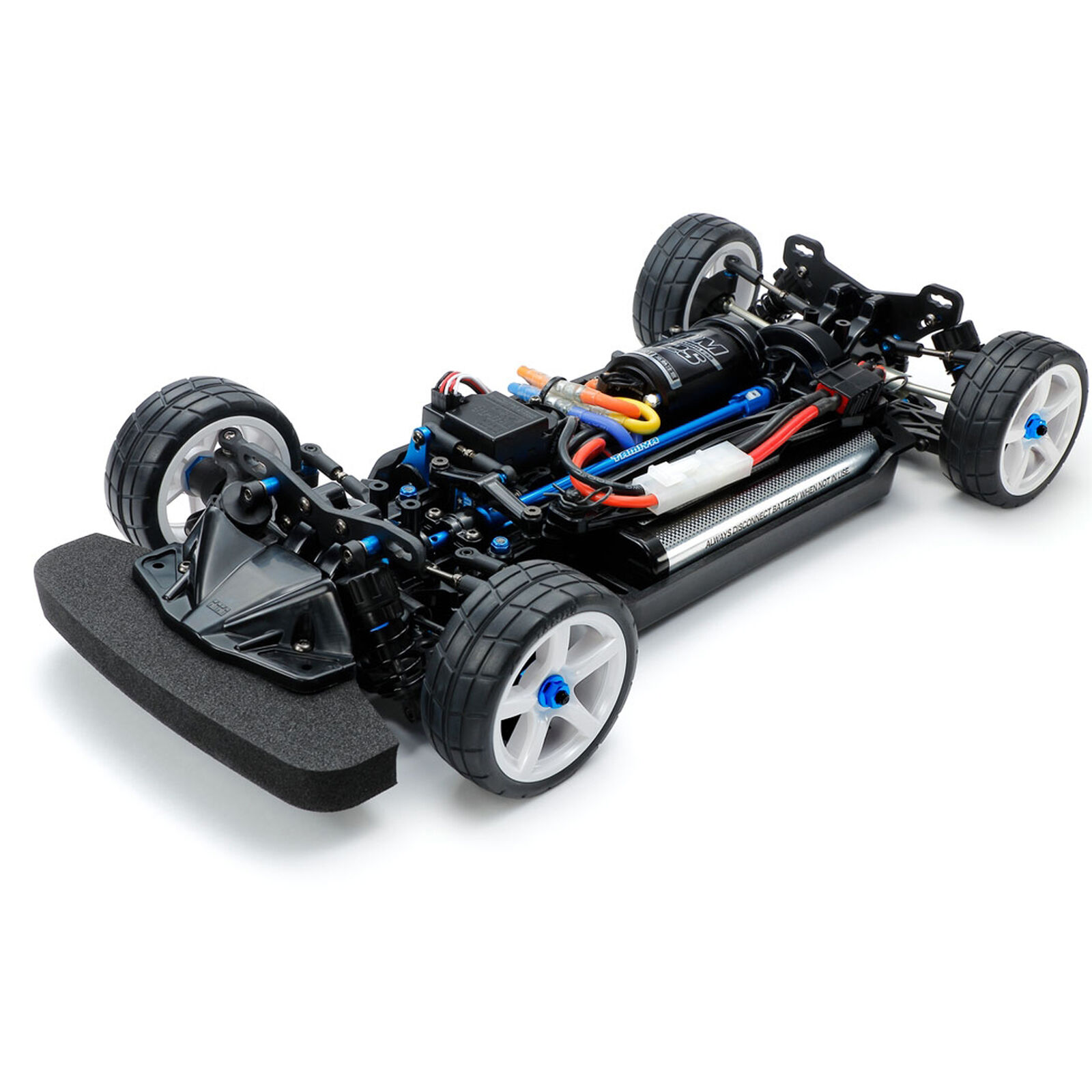

1/10 TT-02 Type-SRX 4x4 On-Road Chassis Kit

Item No. TAM58720
1/10 TT-02 Type-SRX 4x4 On-Road Chassis Kit
Brand Logo
5 out of 5 Customer Rating

1/10 TT-02 Type-SRX 4x4 On-Road Chassis Kit

Item No. TAM58720
$251.30
RC Club points earned on this item shown at checkout.
Select Options
10PX 10-Channel F-4G Transmitter With R404SBS-E Receiver
TAM58720 FUT010044091
10PX 10-Channel F-4G Transmitter With R404SBS-E Receiver
This item is currently not available
$799.99
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
TAM58720 SPM5025
DX5 Pro 5-Channel DSMR Transmitter with SR2100 Receiver
This item is currently not available
$449.99
0 Item Selected Items Selected
7.2V 2200mAh 6-Cell NiMH Battery: Tamiya
TAM58720 GEANM6S2200T
7.2V 2200mAh 6-Cell NiMH Battery: Tamiya
In Stock
$20.59
7.2V 3000mAh 6S NiMH Battery: Tamiya
TAM58720 GEANM6S3000T
7.2V 3000mAh 6S NiMH Battery: Tamiya
In Stock
$26.79
0 Item Selected Items Selected
1/10 SV3 Sidewinder Waterproof ESC/1406-6900Kv Brushless Motor Combo: 4mm Bullet
TAM58720 CSE010011507
1/10 SV3 Sidewinder Waterproof ESC/1406-6900Kv Brushless Motor Combo: 4mm Bullet
This item is currently not available
$154.95
1/10 SV3 Sidewinder Waterproof ESC/1406-7700Kv Brushless Motor Combo: 4mm Bullet
TAM58720 CSE010011508
1/10 SV3 Sidewinder Waterproof ESC/1406-7700Kv Brushless Motor Combo: 4mm Bullet
In Stock
$159.95
1/10 Mamba X Waterproof ESC/1406-6900Kv Sensored Brushless Motor Combo: 4mm Bullet
TAM58720 CSE010015503
1/10 Mamba X Waterproof ESC/1406-6900Kv Sensored Brushless Motor Combo: 4mm Bullet
In Stock
$269.95
1/10 Mamba X Waterproof ESC/1406-7700Kv Sensored Brushless Motor Combo: 4mm Bullet
TAM58720 CSE010015504
1/10 Mamba X Waterproof ESC/1406-7700Kv Sensored Brushless Motor Combo: 4mm Bullet
In Stock
$274.95
SW4 12.6V 2A BEC WP SL ESC 1406-7700 Sens Motor
TAM58720 CSE010016404
SW4 12.6V 2A BEC WP SL ESC 1406-7700 Sens Motor
In Stock
$134.95
1/10 Copperhead 1406-6900Kv Sensored Brushless ESC/Motor Combo
TAM58720 CSE10016603
1/10 Copperhead 1406-6900Kv Sensored Brushless ESC/Motor Combo
In Stock
$224.95
1/10 Copperhead 1406-7700Kv Sensored Brushless ESC/Motor Combo
TAM58720 CSE10016604
1/10 Copperhead 1406-7700Kv Sensored Brushless ESC/Motor Combo
In Stock
$229.95
0 Item Selected Items Selected
HS-77BB Standard Analog Low Profile Servo
TAM58720 HRC31077S
HS-77BB Standard Analog Low Profile Servo
In Stock
$30.99
DB778WP Ultra Torque Brushless Low Profile Waterproof Surface Servo
TAM58720 HRC36788S
DB778WP Ultra Torque Brushless Low Profile Waterproof Surface Servo
In Stock
$154.99
A7090 Brushless Low Profile Metal Gear HV Servo
TAM58720 SPMSA7090
A7090 Brushless Low Profile Metal Gear HV Servo
Next Shipment Date Unknown
$89.99
T120 Standard Low Profile Digital HV High Torque Metal Gear Servo
TAM58720 TEKTT1500
T120 Standard Low Profile Digital HV High Torque Metal Gear Servo
This item is currently not available
$159.99
T180 Standard Low Profile Digital HV High Torque Metal Gear Servo
TAM58720 TEKTT1501
T180 Standard Low Profile Digital HV High Torque Metal Gear Servo
This item is currently not available
$159.99
0 Item Selected Items Selected
Reedy 324-S Compact Balance Charger
TAM58720 ASC27201
Reedy 324-S Compact Balance Charger
This item is currently not available
$42.99
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
TAM58720 ASC27203
Reedy 1416-C2L Dual AC/DC Comp Balance Charger
This item is currently not available
$187.99
Imars III PRO 10A Balance RC Battery Charger
TAM58720 GEA100WMPRO
Imars III PRO 10A Balance RC Battery Charger
This item is currently not available
$59.99
RDX1 Mini AC Charger
TAM58720 HRC44295
RDX1 Mini AC Charger
In Stock
$59.99
RDX2 Mini AC Balance Charger
TAM58720 HRC44299
RDX2 Mini AC Balance Charger
In Stock
$99.99
0 Item Selected Items Selected
In Stock
Selected Store
The link to 1/10 TT-02 Type-SRX 4x4 On-Road Chassis Kit has been copied

Product Details

The TT-02 Type-SRX chassis kit is an upgraded version of the TT-02 Type-S Series with enhanced durability and performance for racing.
Key Features
  • Rear Oil-Filled Diff Gear Unit And Front Direct Spool
  • Diff Joint Cups Are Lightweight Aluminum
  • Features 4-Wheel Independent Double Wishbone Suspension
  • Newly Shaped Propeller Joints Are Compatible With Swing Shaft Protectors
  • High Speed Gears And 27T Pinion Gears
icon-box
In The Box
  • (1) TT-02 Type-SRX Chassis Kit
Quick Links

Introduction

This chassis kit uses Items 22049 and 22047 with updated parts. Also, parts included in this chassis kit were chosen for users who want to learn setup before levelling up to mid-level Tamiya chassis kits. (More cost-effective than buying each part separately)

Features

  • The rear oil-filled diff gear unit and front direct spool ensure ease of assembly and stable drivability.
  • Diff joint cups are lightweight aluminum and give a weight reduction of 7.8g compared to Item 22049’s standard ones.
  • Direct cups are designed for this chassis kit for improved durability.
  • This chassis kit features dependable 4-wheel independent double wishbone suspension from Item 42345 (1/10 R/C TRF420 Chassis Kit) for effective setup options.
  • Newly shaped propeller joints are compatible with swing shaft protectors. These parts use plastic parts at joint sections with stainless pins and aluminum joints to limit wear of parts.
  • Rear drive shafts are 39mm size which are specific for this chassis. These also have a hard coat to enhance durability and lubricity.
  • High speed gears and 27T pinion gears (gear ratio: 6.55: 1) are included as the kit-standard parts.
  • Included TT-02 hi-torque servo saver allows steering angle limit to prevent damage of steering servo.
  • Includes full ball bearings.
  • Comes with a carrying case dedicated for the TT-02 Type-SRX chassis.
  • Uses Item 22054 37mm Drive Shafts which allows stable steering and cornering for superior performance at races.

Included Hop-up Option Parts

  • Item 22054: 37mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)
  • Item 22049: XV-02/TT-02 Oil Gear Differential Unit
  • Item 22047: XV-02/TT-02 Front Direct Coupling Set (39T)
  • Item 54981: 06 Module Hard Coated Aluminum Pinion Gear (27T)
  • Item 54886: TRF419 Suspension Upgrade Set
  • Item 54799: TT-02 Hi-Torque Servo Saver Set (w/Aluminum Horn)
  • Item 54501: TT-02 Aluminum Propeller Shaft
  • Item 54500: TT-02 High Speed Gear Set (68T)
  • Item 53823: Clamp Type Aluminum Wheel Hub (5mm Thick)
  • Item 53576: TRF Damper Oil Seal (4pcs.)
  • Item 42357: Cross Joints for Low Friction Assembly Universal Shafts
  • Item 42323: Short Ball Connector Nuts for TRF Dampers (8pcs.)
  • Item 42143: 4mm Aluminum Serrated Wheel Nut (4pcs. /Blue)

Product Specifications

Ball Bearings Full Ball Bearings
Battery Sold Separately
Charger Sold Separately
Chassis ABS Plastic
Completion Level Kit
Differential Gear Type
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Gear Ratio Adjustable
Power Type Electric
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type CVA Oil Filled
Speed Control Sold Separately
Steering Type 2WS
Suspension Fully Independent Double Wishbone
Vehicle Size Standard
Vehicle Type On-Road
