Product Details

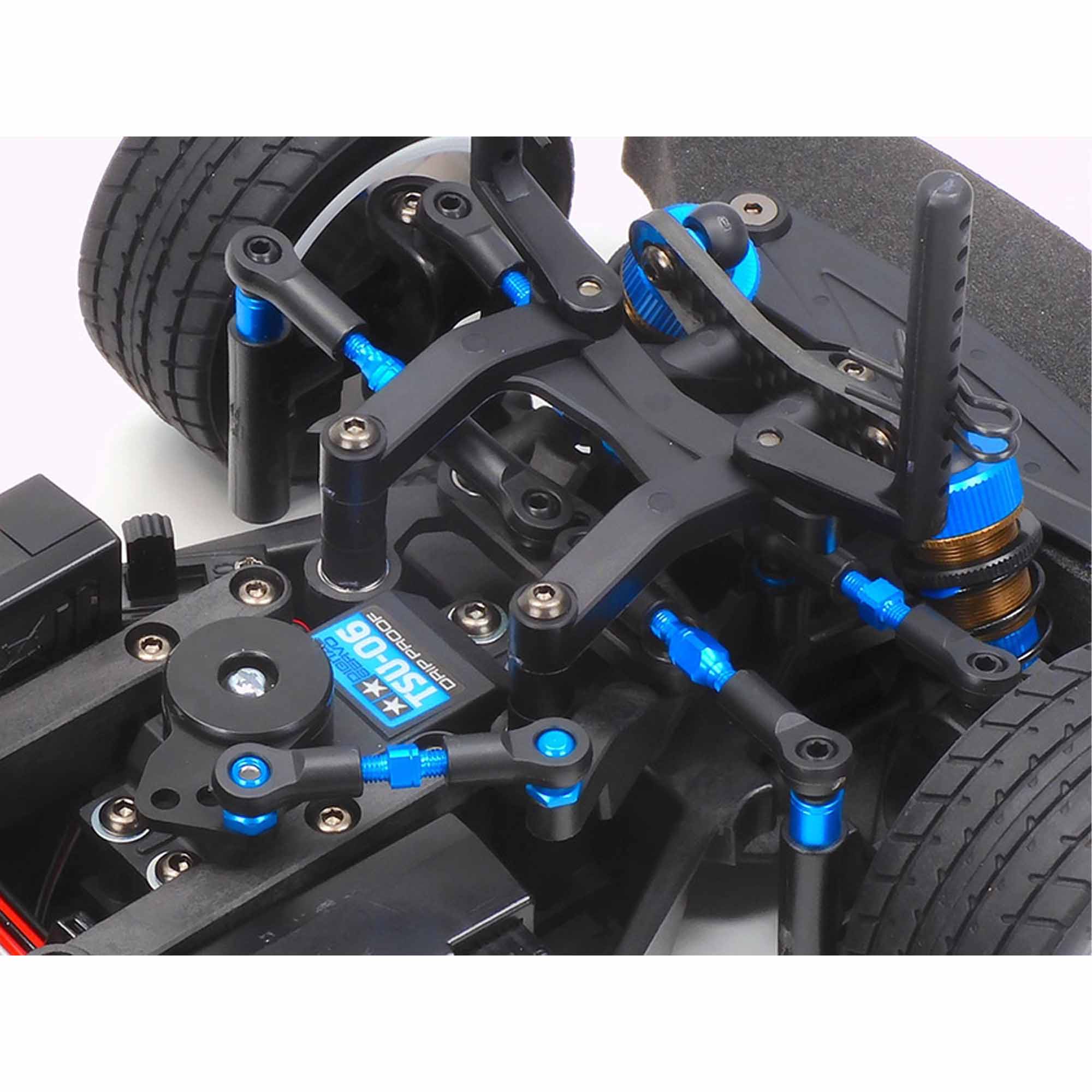

The Tamiya M-08 Chassis platform gets a performance boost with this Limited-Edition release. The M-08R Chassis Kit employs various kinds of option parts such as a ball differential, for the rear gearbox, and TRF (Tamiya Racing Factory) precision oil dampers to get ready for club races!
Key Features
  • Utilizes Twelve 3/32-Inch Balls To Give Superb Stability
  • Includes Carbon Fiber Components
  • M-08 Concept Reinforced Gearbox Parts
  • Comes With Dedicated Chassis Weight
  • Suspension Parts Feature Carbon Fiber-Reinforced Resin
icon-box
In The Box
  • (1) 1/10 RC M-08R Chassis Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) 1/10 Electronic Speed Control
  • (1) 540-Size Electric Motor
  • (1) Standard-Size Steering Servo
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
  • (1) Polycarbonate Touring Car Body
  • (4) Touring Car Wheels & Tires
1/10 M-08R 2WD Rally Chassis Kit (LIMITED EDITION)

About the M-08 Standard Edition

This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.

Features

  • 1/10 scale R/C model assembly kit.
  • The TA06 Rear Ball Differential Set (Item 54306) utilizes twelve 3/32-inch balls to give superb stability.
  • Includes carbon fiber components such as battery holders and body mount base
  • M-08 Concept Reinforced K Parts (Gearbox) (Item 54983) give sturdier gearbox and steering setups, for more efficient drive and improved steering feel.
  • Comes with the dedicated chassis weight (20g).
  • Features hex head screws.
  • M-07 Concept Reinforced D Parts (Suspension Arms) (Item 54811) featuring carbon fiber-reinforced resin allow superior cornering ability.
  • Durable, lightweight aluminum turnbuckle shafts (3x18mm; Item54247, 3x23mm; Item 54248, and 3x32mm; Item 54249) allow adjustment of length without removing adjusters.
  • Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers+ (4pcs.)
  • The 1.3mm diameter damper pistons (x3) give smooth oil flow and facilitate more flexible suspension.

Product Specifications

Ball Bearings Full Ball Bearings
Battery Sold Separately
Bushing Material Metal
Charger Sold Separately
Chassis FRP Fiberglass Reinforced Plastic
Completion Level Kit
Differential Ball Pressure Plate
Drive Type Forward/Brake/Reverse
Drivetrain 2WD
Gear Ratio Adjustable
Manufacturer # 47480
Motor Size 540
Power Type Electric
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type Aluminum Oil Filled
Speed Control Sold Separately
Suspension Fully Independent Double Wishbone
Vehicle Type On-Road
