1/10 DB01SR 4x4 Electric Buggy Chassis Kit

Item No. TAM58753
1/10 DB01SR 4x4 Electric Buggy Chassis Kit
Pre-Order
Brand Logo
5 out of 5 Customer Rating

1/10 DB01SR 4x4 Electric Buggy Chassis Kit

Item No. TAM58753
$299.60
RC Club points earned on this item shown at checkout.
Releasing December 2025
Selected Store
The link to 1/10 DB01SR 4x4 Electric Buggy Chassis Kit has been copied

Product Details

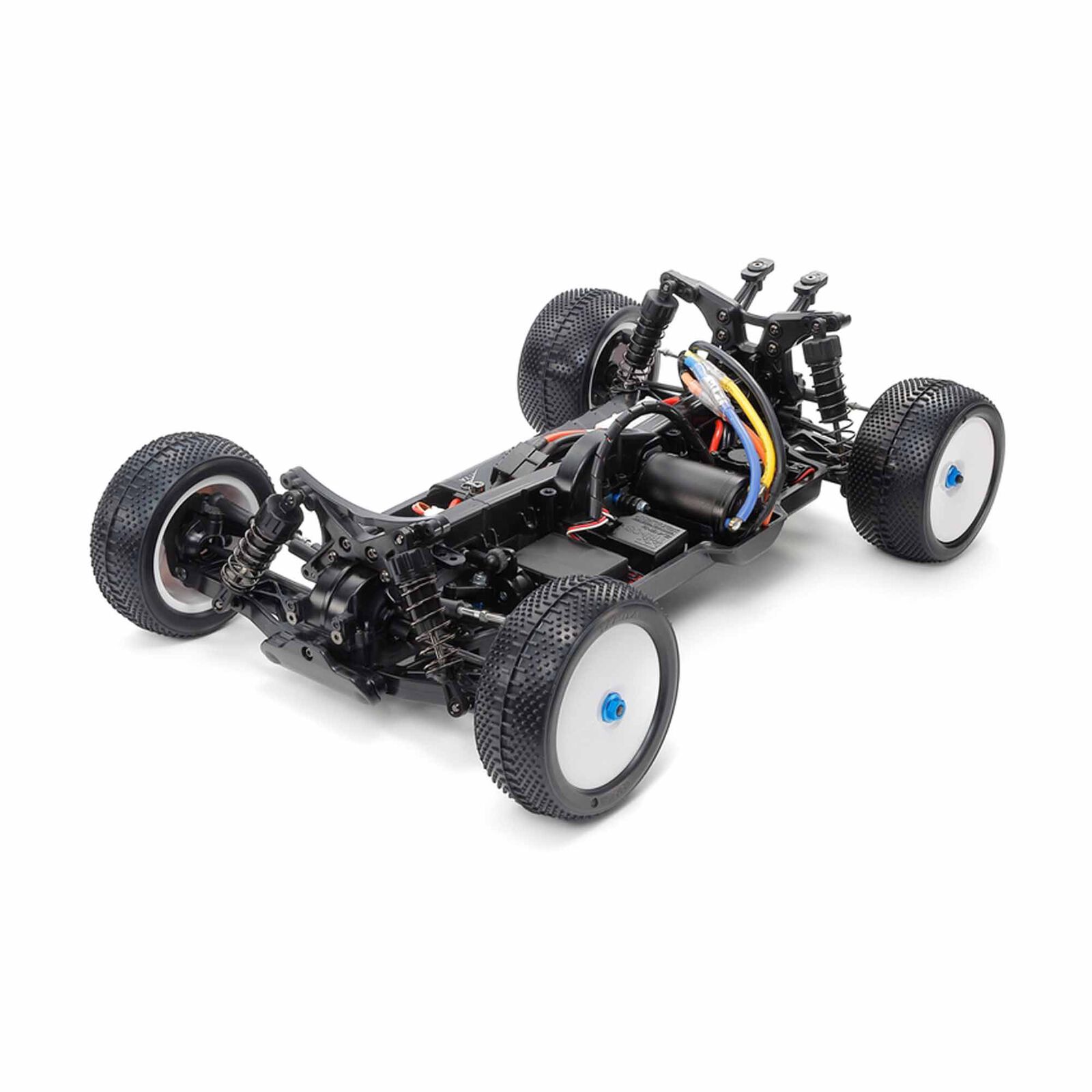

This radio control chassis kit creates a 2 belt-driven 4WD buggy with identical length belts for optimal power transfer balance. The kit includes a wide selection of Hop-Up Option parts for great off-road performance and enhanced durability! Furthermore, the kit includes the Baldre body (TAM51338) for a sleek off-road appearance!
icon-box
In The Box
  • (1) 1/10 DB01SR 4x4 Electric Buggy Chassis Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) Electronic Speed Control
  • (1) 540-Size Electric Motor
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger

4WD 2 Part Belt-Drive DB01SR Chassis

The DB01's 4WD system features a centrally located spur gear driving two belts. Both the spur gear and drive belts are protected by plastic covers that prevent dirt and debris from interfering with the drivetrain. Front and rear bulkheads are integrated with the chassis, simplifying construction and maintenance. To ensure the chassis can manage the stresses of off-road racing, it is made from fiberglass-reinforced nylon material for greater strength. Furthermore, the underside of the chassis is completely flat, enabling excellent skid characteristics.

Features

  • 1/10 scale R/C model assembly kit.
  • A slipper clutch (from Item 54018 DB01 Slipper Clutch Set) provides stable off-road drive.
  • Features oil-filled gear differentials.
  • The gear differentials (from Item 54329 DB01 Gear Differential Unit) feature steel bevel gears (from Item 54428 Steel Bevel Gears for TA06 Gear Differential Unit) which need less maintenance and are compatible with high-power motors.
  • Front and rear universal shafts ensure efficient drive and minimal maintenance.
  • Front and rear hex-hubs allow a wide choice of wheels and tires.
  • Battery section of the chassis can accept square-shaped battery packs.
  • Dedicated livery stickers, masking stickers for the window and Baldre body included. NOTE: Original Baldre body stickers are not included.
  • Box packaging can be used as a carrying case.
  • Required to complete: 2-channel radio, steering servo, ESC, motor, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint.

Product Specifications

Ball Bearings Full Ball Bearings
Battery Sold Separately
Body Clear Polycarbonate
Charger Sold Separately
Chassis Fiberglass Reinforced Plastic
Completion Level Kit
Differential Oil-Filled Gear Differential
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Gear Ratio Adjustable
Manufacturer # 58753
Power Type Electric
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Shock Type Oil-Filled
Speed Control Sold Separately
Suspension Fully Independent Double Wishbone
Vehicle Size Standard
Vehicle Type Buggy
